The Most Beautiful RAG: Starring ColPali, Qdrant, Minio and Friends

A Follow‑up: From Little Scripts to a Full Template

A few weeks ago I shared: The Most Beautiful RAG: Starring Colnomic, Qdrant, Minio and Friends. That project explored late‑interaction retrieval with ColPali‑style embeddings, Qdrant, and MinIO, plus a bunch of performance tricks.

This post levels that up into a reusable template you can clone, run, and build on:

• Repo: https://github.com/athrael-soju/fastapi-nextjs-colpali-template
• Component READMEs: backend, frontend, colpali
• Related script (ColQwen FastAPI): https://github.com/athrael-soju/little-scripts/tree/main/colqwen_fastapi

If you want a minimal, API‑first Vision RAG that does page‑level retrieval over PDFs, you’re in the right place.

What It Is

• Page-level, Vision RAG using ColPali-style embeddings, Qdrant, and MinIO
• FastAPI backend with routes for index, search, chat (streaming), and maintenance, as a fully functional Next.js frontend
• Docker Compose spins up Qdrant, MinIO, the backend API, and frontend. Additional docker compose for ColPali Embedding API as a separate service (CPU/GPU modes or explicit base URL)
• Mean Pooling, Reranking & optional binary quantization in Qdrant for memory/speed trade‑offs

High‑Level Architecture

The core pieces:

• api/app.py + api/routers/*: Modular FastAPI app (meta, retrieval, chat, indexing, maintenance)
• backend.py: Thin entrypoint that boots api.app.create_app() frontend/ (Next.js): Simple UI to serve backend API
• colpali/: Embedding API service (CPU/GPU) used by the backend
• clients/colpali.py: HTTP client to a ColPali‑style embedding API (queries, images, patch metadata)
• clients/qdrant.py: Multivector prefetch (rows/cols) + re‑ranking using using="original"
• clients/minio.py: Object storage for page images with public URLs
• clients/openai.py: Thin wrapper for streaming completions
• api/utils.py: PDF → image via pdf2image
• config.py: All the knobs in one place

Next.js Frontend

• Runs at http://localhost:3000 when the frontend service is started.
• Basic upload/search/chat UI; intended as a scaffold you can extend (no auth by default).

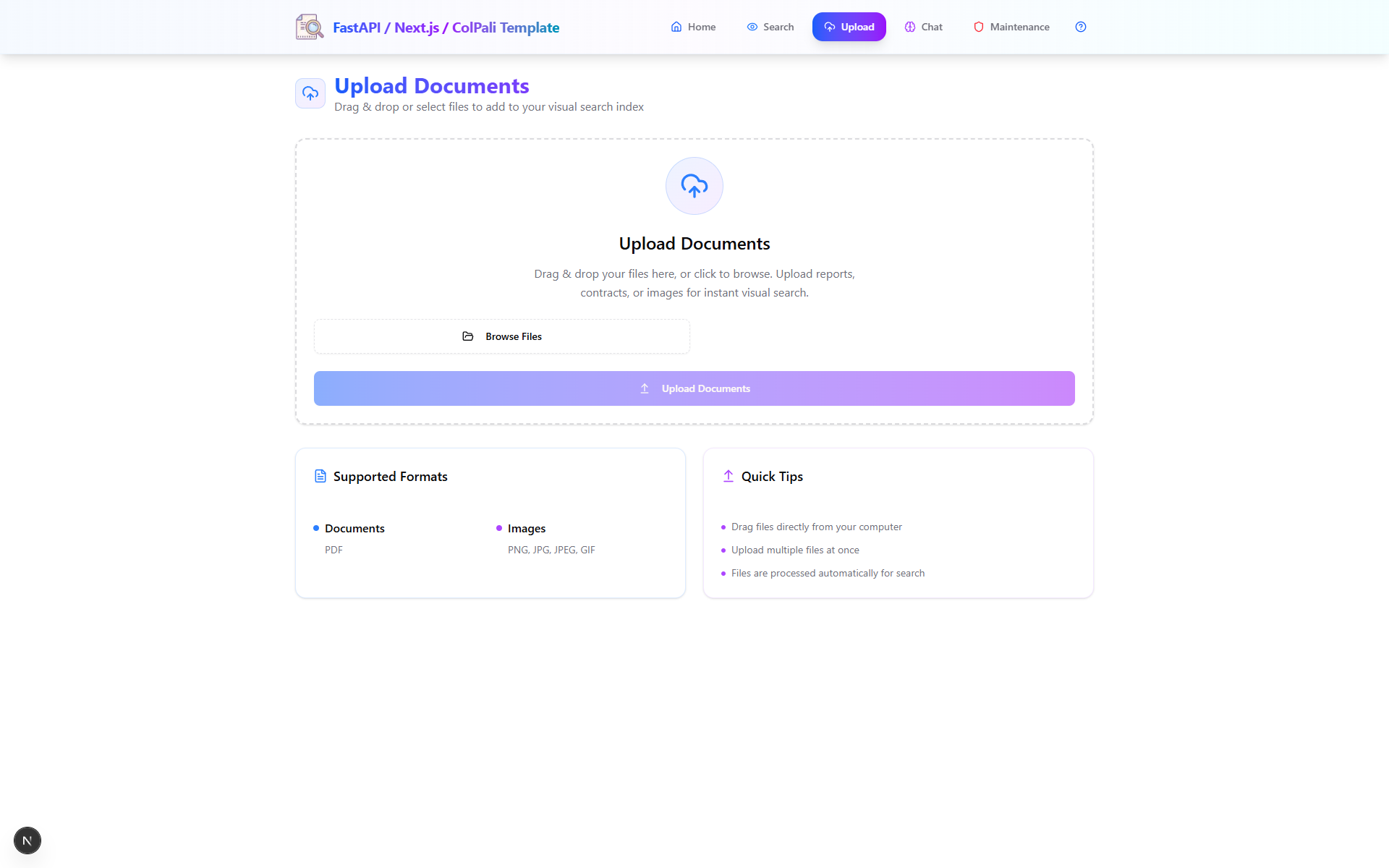

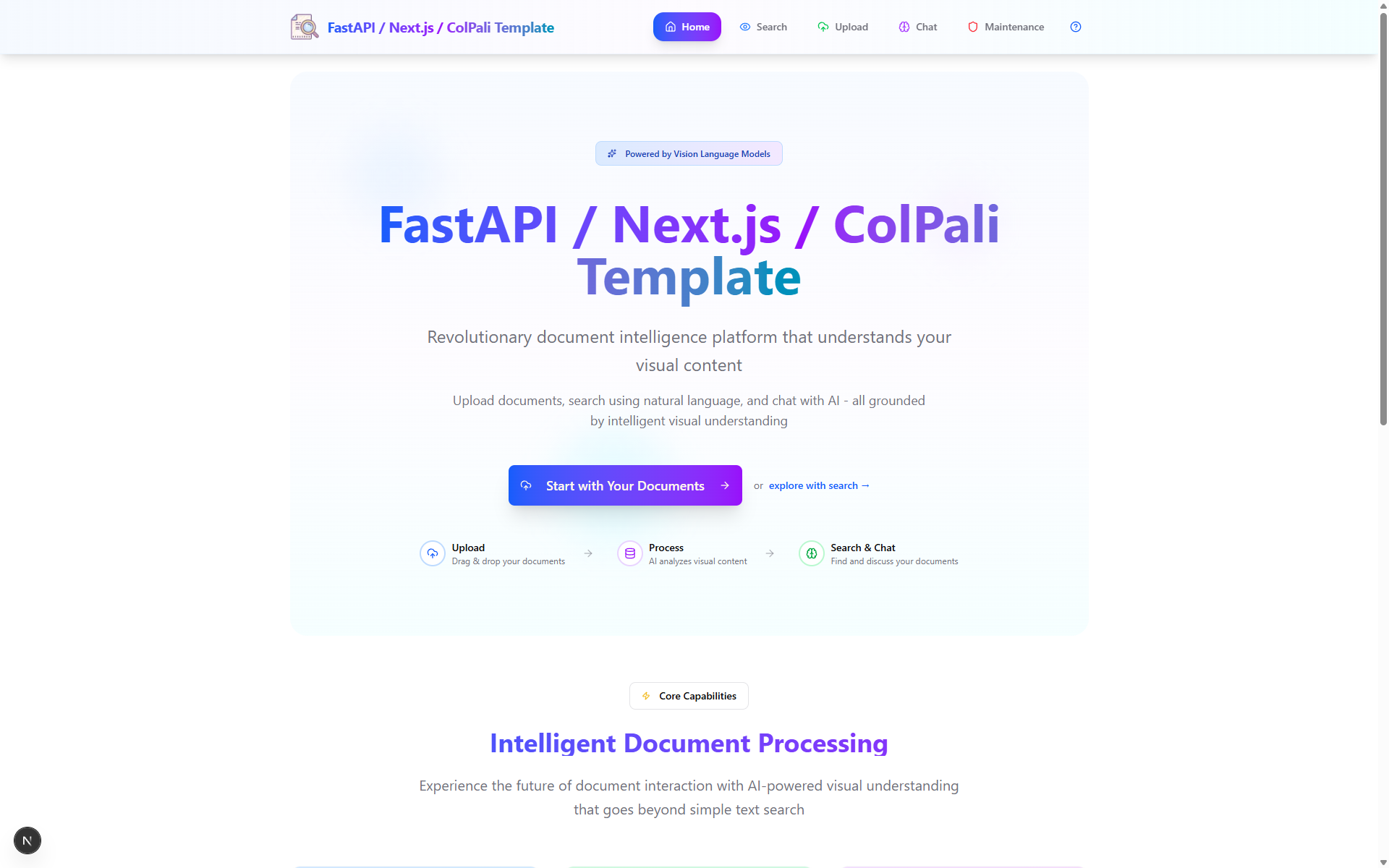

Home	Upload

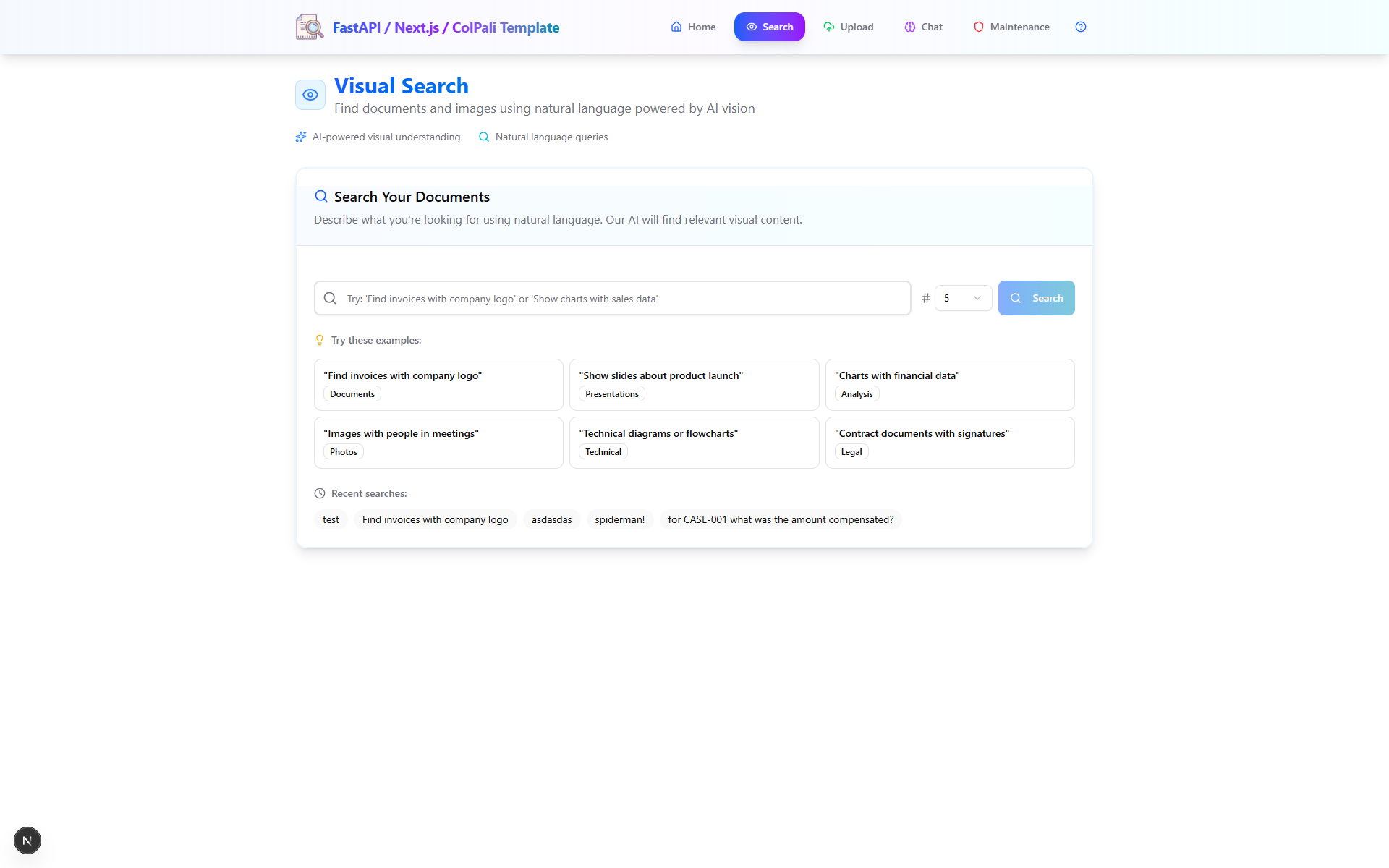

Search	Chat

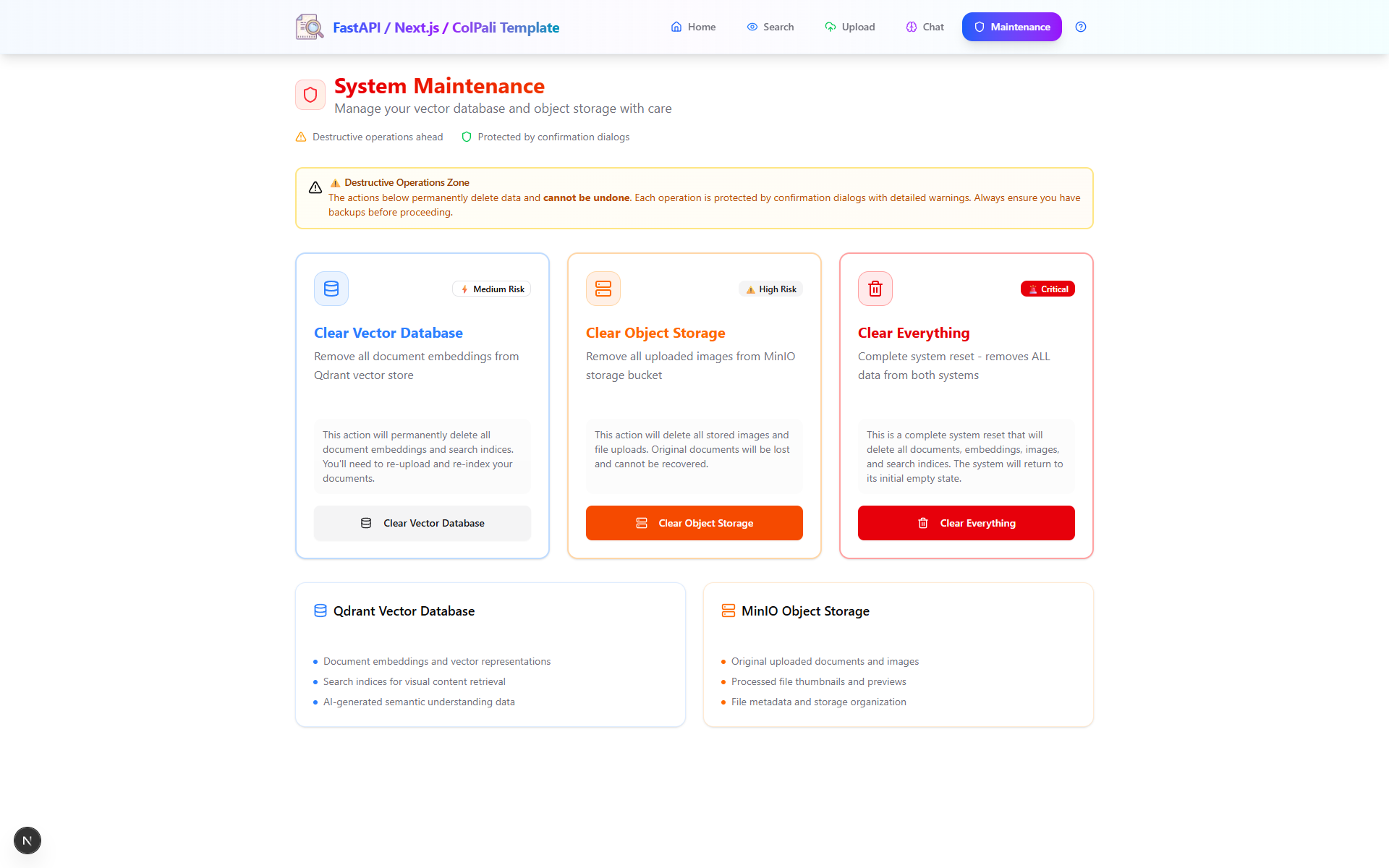

Maintenance	About

Indexing Flow

1. PDF → images (pdf2image.convert_from_path)
2. Images → embeddings (external ColPali API)
3. Save images to MinIO (public URLs)
4. Upsert embeddings (original + mean‑pooled rows/cols) to Qdrant with payload metadata

Retrieval Flow

1. Query → embedding (ColPali API)
2. Qdrant multivector prefetch (rows/cols), then rerank with using="original"
3. Fetch top‑k page images from MinIO
4. Stream an OpenAI‑backed answer conditioned on user text + page images

Quickstart (Docker Compose)

# 1) Configure env
cp .env.example .env
# Set OPENAI_API_KEY / OPENAI_MODEL
# Choose COLPALI_MODE=cpu|gpu (or set COLPALI_API_BASE_URL to override)

# 2) Start the ColPali Embedding API (separate compose, from colpali/)
# CPU at http://localhost:7001 or GPU at http://localhost:7002
docker compose -f colpali/docker-compose.yml up -d api-cpu  # or api-gpu

# 3) Start all services
docker compose up -d

# Services
# Qdrant:   http://localhost:6333  (Dashboard at /dashboard)
# MinIO:    http://localhost:9000  (Console: http://localhost:9001, user/pass: minioadmin/minioadmin)
# API:      http://localhost:8000  (OpenAPI: http://localhost:8000/docs)
# Frontend: http://localhost:3000   (if enabled)

Open the docs at http://localhost:8000/docs and try the endpoints.

Local Development (without Compose)

• Install Poppler (needed by pdf2image). Ensure pdftoppm/pdftocairo are in PATH.
• Create a venv, install requirements, run Qdrant/MinIO (Docker is fine), then:

cp .env.example .env
# set OPENAI_API_KEY, OPENAI_MODEL, QDRANT_URL, MINIO_URL, COLPALI_API_BASE_URL
uvicorn backend:app --host 0.0.0.0 --port 8000 --reload

Environment Variables (high‑value ones)

• Core: LOG_LEVEL, HOST, PORT, ALLOWED_ORIGINS
• OpenAI: OPENAI_API_KEY, OPENAI_MODEL
• ColPali: COLPALI_MODE (cpu|gpu), COLPALI_CPU_URL, COLPALI_GPU_URL, COLPALI_API_BASE_URL (overrides), COLPALI_API_TIMEOUT
• Qdrant: QDRANT_URL, QDRANT_COLLECTION_NAME, QDRANT_SEARCH_LIMIT, QDRANT_PREFETCH_LIMIT
• Qdrant (storage/quantization): QDRANT_ON_DISK, QDRANT_ON_DISK_PAYLOAD, QDRANT_USE_BINARY, QDRANT_BINARY_ALWAYS_RAM, QDRANT_SEARCH_RESCORE, QDRANT_SEARCH_OVERSAMPLING, QDRANT_SEARCH_IGNORE_QUANT
• MinIO: MINIO_URL, MINIO_PUBLIC_URL, MINIO_ACCESS_KEY, MINIO_SECRET_KEY, MINIO_BUCKET_NAME, MINIO_WORKERS
• Processing: DEFAULT_TOP_K, BATCH_SIZE, WORKER_THREADS, MAX_TOKENS

See .env.example for a minimal starting point.

ColPali API contract (expected)

The backend expects a ColPali‑style embedding API with endpoints:

• GET /health → 200 when healthy
• GET /info → JSON including { "dim": <int> }
• POST /patches with { "dimensions": [{"width": W, "height": H}, ...] } → { "results": [{"n_patches_x": int, "n_patches_y": int}, ...] }
• POST /embed/queries with { "queries": ["...", ...] } → { "embeddings": [[[...], ...]] }
• POST /embed/images (multipart) → objects per image including embedding, image_patch_start, image_patch_len

Ensure your embedding server matches this contract to avoid client/runtime errors.

Data model in Qdrant

Each point stores three vectors (multivector):

• original: full token sequence
• mean_pooling_rows: pooled by rows
• mean_pooling_columns: pooled by columns

Payload example:

{
  "index": 12,
  "page": "Page 3",
  "image_url": "http://localhost:9000/documents/images/<id>.png",
  "document_id": "<id>",
  "filename": "file.pdf",
  "file_size_bytes": 123456,
  "pdf_page_index": 3,
  "total_pages": 10,
  "page_width_px": 1654,
  "page_height_px": 2339,
  "indexed_at": "2025-01-01T00:00:00Z"
}

Binary quantization (optional)

Enable Qdrant binary quantization to reduce memory and speed up search while preserving quality via rescore/oversampling.

• Set in .env: QDRANT_USE_BINARY=True, QDRANT_BINARY_ALWAYS_RAM=True (optionally QDRANT_ON_DISK=True, QDRANT_ON_DISK_PAYLOAD=True)
• Tune search: QDRANT_SEARCH_RESCORE=True, QDRANT_SEARCH_OVERSAMPLING=2.0, QDRANT_SEARCH_IGNORE_QUANT=False
• Apply changes: clear the collection (POST /clear/qdrant) and re‑index

Using the API

• GET /health — check dependencies
• GET /search?q=...&k=5 — top‑k results with payload metadata
• POST /index (multipart files[]) — upload and index PDFs
• POST /chat — JSON body with query/options; returns full text and retrieved pages
• POST /chat/stream — same body; streams text/plain tokens
• POST /clear/qdrant | /clear/minio | /clear/all — maintenance

API Examples

# Search
curl "http://localhost:8000/search?q=What%20is%20the%20booking%20reference%3F&k=5"

# Chat (non‑streaming)
curl -X POST http://localhost:8000/chat \
  -H 'Content-Type: application/json' \
  -d '{
    "message": "What is the booking reference for case 002?",
    "k": 5,
    "ai_enabled": true
  }'

Why ColPali‑style Retrieval Here?

• Handles interleaved text+images directly — no lossy OCR pipeline
• Preserves layout structure (tables, charts, code blocks, equations)
• Plays nicely with multivector late‑interaction search
• Pairs well with Qdrant’s prefetch+rereank pattern

If you read my previous post, you’ll also recognize mean‑pooled vectors for fast prefetch and final reranking with full‑res embeddings — the same spirit is here.

Troubleshooting

• OpenAI: Verify OPENAI_API_KEY and OPENAI_MODEL if responses error.
• ColPali API: Ensure the service is up and reachable (GET /health) at COLPALI_API_BASE_URL or via mode URLs.
• Patch metadata mismatch: Ensure image_patch_start/image_patch_len are returned by /embed/images.
• Qdrant/MinIO reachability: Check docker compose ps and URLs.
• Binary quantization toggles: Recreate the collection (e.g., POST /clear/qdrant) and re‑index after changing flags.
• Poppler on Windows: Install Poppler and add bin/ to PATH so pdf2image can find pdftoppm.
• Large PDFs on low VRAM: Reduce BATCH_SIZE in config.py.

Credits & Links

• Template repo: https://github.com/athrael-soju/fastapi-nextjs-colpali-template
• Component READMEs: backend, frontend, colpali
• ColQwen FastAPI (Dependency): https://github.com/athrael-soju/little-scripts/tree/main/colqwen_fastapi
• Earlier exploration: /blog/little-scripts/colnomic-qdrant-rag

I hope you find this useful! Let me know if you have any questions or run into any issues.

Just kidding, nobody makes it this far, lel
